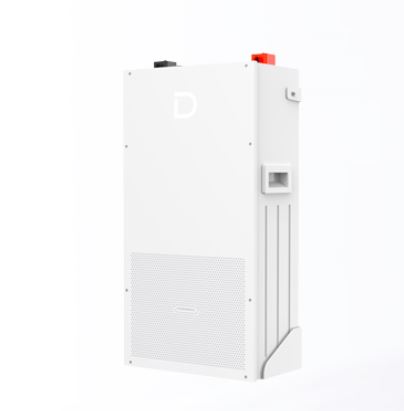

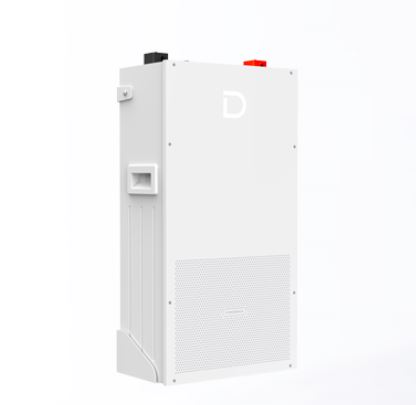

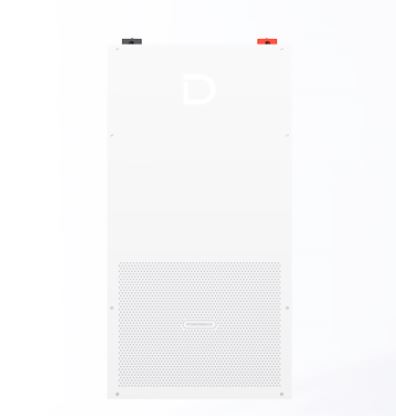

The Dyness PowerBrick Series 16kWh low-voltage lithium battery (models like the PowerBrick SC and Plus) is a high-capacity LiFePO4 residential energy storage system delivering 16.07 kWh nominal capacity and 15.27 kWh usable energy.

Key Specifications

• Nominal Voltage: 51.2V (48V compatible systems)

• Capacity: 314 Ah

• Depth of Discharge (DoD): 95%

• Max Charge/Discharge Current: 200A continuous (300A peak for 2 minutes)

• Max Power Output: 10.24 kW

• Cycle Life: ≥8,000 cycles

• Warranty: 10 years

Features & Safety

• Scalability: Supports connecting up to 50 units in parallel, expanding total capacity from 16 kWh up to 803 kWh.

• Safety: Built-in aerosol fire suppression system that activates within 5 seconds.

• Temperature Control: Optional automatic self-heating functionality for operation down to -20°C.

• Compatibility: Works with mainstream low-voltage hybrid and off-grid inverters (such as Deye, Victron, GoodWe, Growatt, and Solis).
