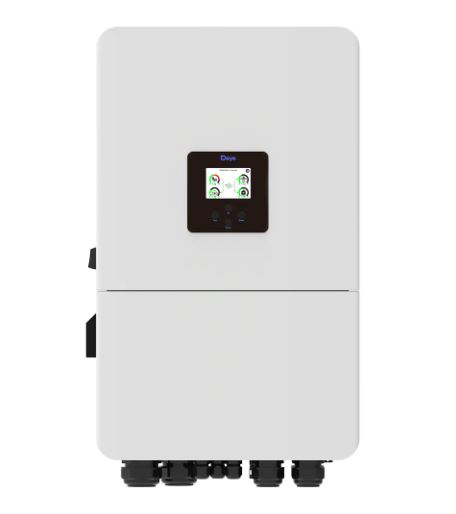

20kW 48V LV Deye hybrid inverter
Ksh 458,000
Ksh 407,000
4.3|123 sold
The Deye SUN-20K-SG05LP3-EU-SM2 is a 20kW three-phase low-voltage (LV) hybrid solar inverter designed for residential and commercial energy storage.
Key Specifications
• Rated AC Output: 20kW (supports 100% unbalanced output per phase)
• Battery Support: 48V / 51.2V low-voltage battery range (40–60V) with up to 350A max charging/discharging current
• PV Input: Max access power up to 40kW, max voltage 800V, dual MPPT trackers
• Efficiency: Up to 97.6% max efficiency (Euro 97.0%)
• Switch Time: 4ms to 20ms seamless transfer between on-grid and off-grid modes
• Scalability: Parallel operation supported for up to 10 units
• Protection & Design: IP65 rating, intelligent air cooling, Plexiglas touchscreen, and integrated WiFi/RS485/CAN interfaces
• Additional Features: AC coupling for retrofitting existing systems, generator compatibility, and 6 customizable battery charging/discharging time periods
Frequently Asked Questions
What is the power rating of the 20kW 48V LV Deye hybrid inverter?
The 20kW 48V LV Deye hybrid inverter is rated at 20000W.
What category does the 20kW 48V LV Deye hybrid inverter belong to?
The 20kW 48V LV Deye hybrid inverter is part of our Hybrid Inverters range.
How much does the 20kW 48V LV Deye hybrid inverter cost?
The 20kW 48V LV Deye hybrid inverter is priced at Ksh 407,000.
