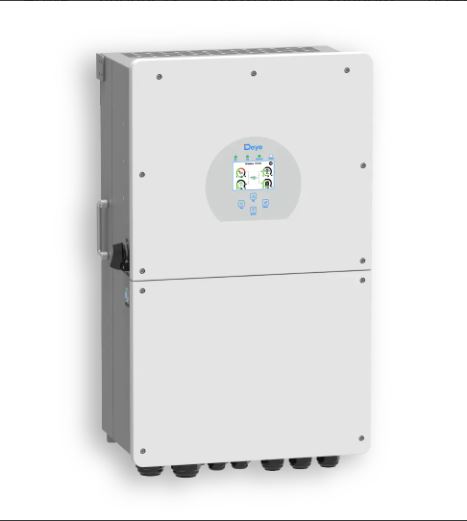

Deye 16kW Hybrid Single phase Solar Inverter Dual MPPT
Ksh 350,000
Ksh 295,000
High Power Output: With a rated AC output power of 16kW and maximum AC output power of 17.6kW, it ensures ample power supply for various applications. Wide DC Input Range: Supports a maximum DC input power of 20kW, offering flexibility in solar panel configurations.
Model: SUN-16K-SG01LP1-EU
Battery Input Data
Battery Type: Lead-acid or Lithium-ion
Battery Voltage Range(V)40-60
Max.Charging Current(A):290
Max.Discharging Current(A):290
Charging Strategy for Li-ion Battery: Self-adaption to BMS
Number of battery input: 2
PV String Input Data
Max. PV Access Power (W): 32000Max
DC Input Power（W 25600Max
DC Input Voltage（V）500
Start-up Voltage（V）125
MPPT Voltage Range（V）150-425
Rated DC Input Voltage(V)370
Max Input Short-Circuit Current（A）44+44+44
Max Operating PV Input Current（A）26+26+26
No.of MPP Trackers/No.of String Per MPP Tracker3/2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power（W) 16000
Max AC Input/Output Apparent Power （VA) 17600
Peak Power (off-grid)（W）2 times of rated power,10s
Rated AC Input/Output Current（A）72.7/69.6
Max AC Input/Output Current（A）80/76.5
Max Continuous AC Passthrough (grid to load)（A）100
Rated Input/Output Voltage/Range(V)220V/230 0.85Un-1.1Un
Grid Connection FormL+N+PE
Rated Input/Output Grid Frequency/Range50/45-55, 60/55-65
Power Factor Adjustment Range0.8 leading-0.8lagging
Total Current Harmonic Distortion THDi<3% (of nominal power)
DC Injection Current<0.5%ln
Efficiency
Max Efficiency97.6%
Euro Efficiency96.5%
MPPT Efficiency＞99%
Equipment Protection
Integrated
DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection
Surge Protection LevelTYPE II(DC),TYPE II(AC)
Interface
Communication InterfaceRS485/RS232/CAN
Monitor Mode
GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity0~100%
Permissible Altitude2000m
Noise＜50 dB(A)
Ingress Protection(IP) RatingIP 65
Inverter Topology Non-Isolated
Over Voltage CategoryOVC II(DC),OVC III(AC)
Cabinet size（W*H*D）[mm] 464*763*282（Excluding connectors and brackets）
Weight[kg] 52
Warranty5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty PolicyType Of CoolingIntelligent air cooling
Grid RegulationIEC 61727,IEC 62116,NRS 097
Safety EMC/StandardIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Key Features & Specifications
- Colorful touch LCD, IP65 protection degree
- 6 time periods for battery charging/discharging
- Max. charging/discharging current of 290A
- Support storing energy from diesel generator
- AC couple to retrofifit existing solar system
- Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Frequently Asked Questions
What is the power rating of the Deye 16kW Hybrid Single phase Solar Inverter Dual MPPT?
The Deye 16kW Hybrid Single phase Solar Inverter Dual MPPT is rated at 16000W.
What category does the Deye 16kW Hybrid Single phase Solar Inverter Dual MPPT belong to?
The Deye 16kW Hybrid Single phase Solar Inverter Dual MPPT is part of our Hybrid Inverters range.
How much does the Deye 16kW Hybrid Single phase Solar Inverter Dual MPPT cost?
The Deye 16kW Hybrid Single phase Solar Inverter Dual MPPT is priced at Ksh 295,000.
