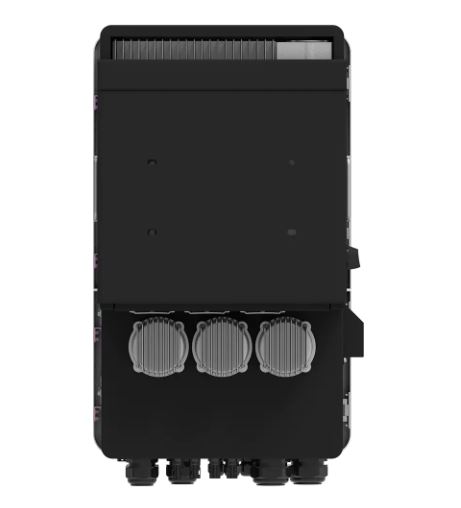

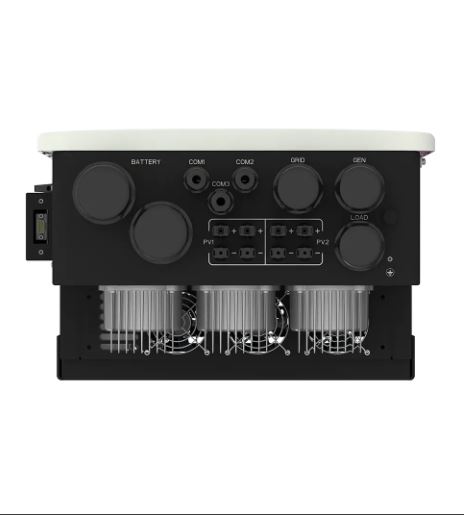

DEYE 20KW LV HYBRID INVERTER / CHARGER SG05LP3-EU-SM2

The Deye 20kW Low-Voltage (LV) Three-Phase Hybrid Inverter (SUN-20K-SG05LP3-EU-SM2) is a versatile and advanced energy management solution designed for residential, commercial, and industrial applications.

Below is a concise list of its key features.

• • High Power Capacity: Delivers 20kW rated AC output power, with support for 1.1x overload (22kW max AC output) and up to 30kW PV input power for large solar arrays.

  • Advanced MPPT Technology: Features dual MPPTs with 20A+20A PV input current, optimizing energy harvest from high-current PV modules.

  • Low-Voltage Battery Compatibility: Supports 48V battery systems (40-60V range), offering cost-effective and safe energy storage without requiring a BMS box.

  • High Charging/Discharging Current: Handles up to 350A for efficient energy storage and retrieval, ideal for high-demand applications.

  • 100% Unbalanced Output: Each phase supports up to 50% of rated power, enabling flexible load distribution across three-phase systems.

  • Seamless Grid Switching: 4ms on-grid to off-grid mode switch for uninterrupted power supply during outages.

  • Scalable Design: Supports parallel operation of up to 10 units for on-grid and off-grid setups, accommodating future expansion.

  • AC Coupling: Enables retrofitting with existing solar systems, enhancing energy efficiency.

  • Flexible Energy Management: Offers 6 time periods for customizable battery charging/discharging to optimize energy usage.

  • Generator Integration: Supports energy storage from diesel generators for off-grid reliability.

  • High Efficiency: Achieves up to 97.6% efficiency and >99% MPPT efficiency, minimizing energy loss.

  • User-Friendly Interface: Features a durable Plexiglas touchscreen and intuitive controls for easy monitoring and setup.

  • Smart Monitoring: Supports remote monitoring and firmware updates via Wi-Fi, RS485, CAN, and mobile apps for real-time system insights.

  • Sleek, Modern Design: Screwless front panel and flip-cover wiring area for easier installation and maintenance.

  • Robust and Durable: IP65-rated enclosure ensures reliability in harsh environments, suitable for indoor and outdoor use.

  • SiC MOSFET Technology: Utilizes advanced silicon carbide components for enhanced performance and reduced size.

  • Certified Quality: IEC62109 certified by TUV Rheinland, ensuring safety and compliance for global standards.
