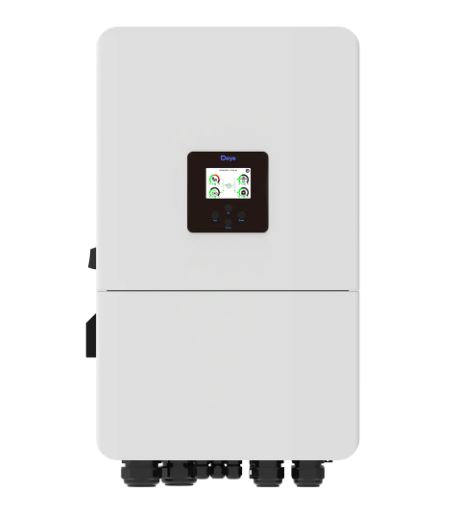

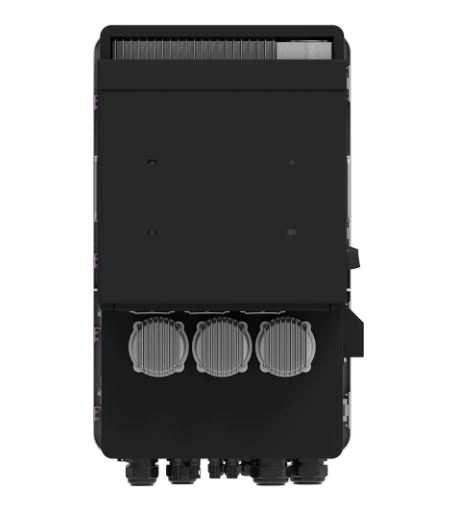

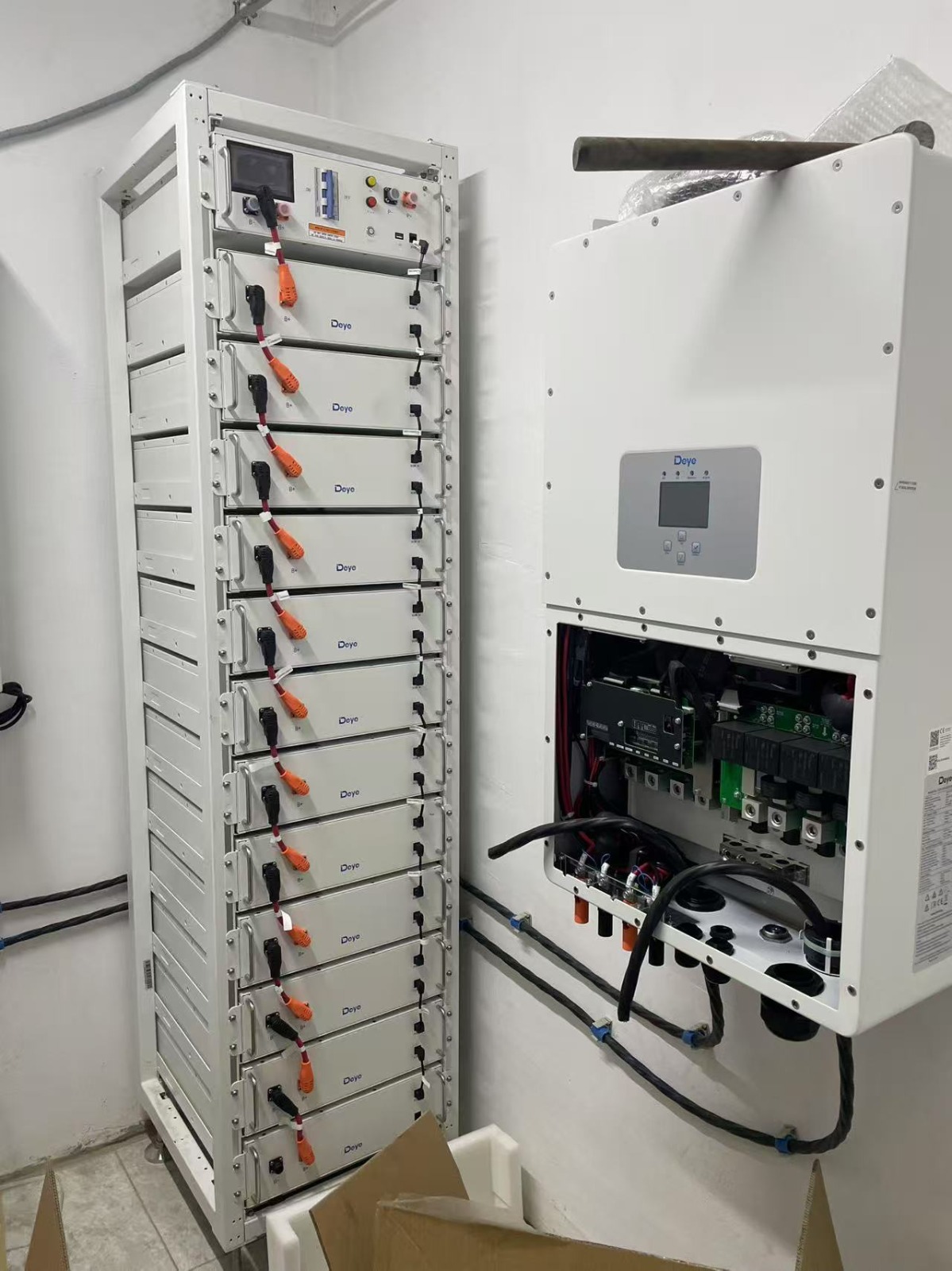

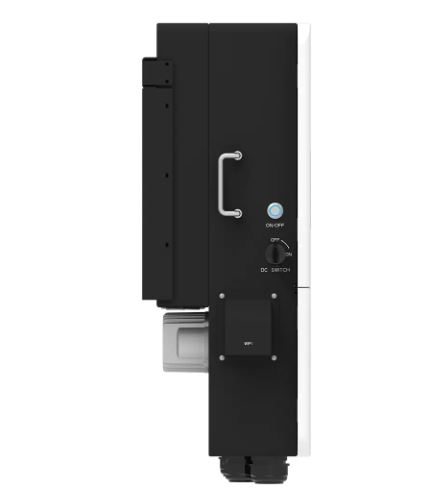

The Deye 80kW Three-Phase High-Voltage Hybrid Inverter (Model: SUN-80K-SG02HP3-EU-EM6) is a heavy-duty commercial and industrial (C&I) solar and energy storage system.

Key Specifications

• Rated AC Power: 80,000W (Max apparent power: 88,000 kVA)
• Max PV Input Power: Up to 160kW (supports 2x PV oversizing)
• MPPT Trackers: 6 independent MPPT trackers with 12 string inputs (up to 36A per tracker)
• Battery Compatibility: High-voltage lithium-ion batteries ranging from 160V to 1000V
• Charge/Discharge Current: Max 160A
• Efficiency: Max efficiency up to 98.7% (Euro efficiency 98.1%)
• Enclosure & Cooling: IP65 dust/water protection rating with intelligent air cooling
• Parallel Operation: Supports up to 10 units in parallel for both on-grid and off-grid configurations
• Output: 100% unbalanced three-phase output (230/400Vac)

Core Features

• AC Coupling: Can retrofit and expand existing solar grid systems.
• Peak Shaving & Load Shifting: Manages high-demand commercial loads and integrates with diesel generator support.
• Smart Monitoring: Built-in support for RS485, CAN, Wi-Fi, and Bluetooth monitoring, plus an acrylic touchscreen display
