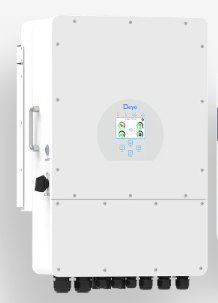

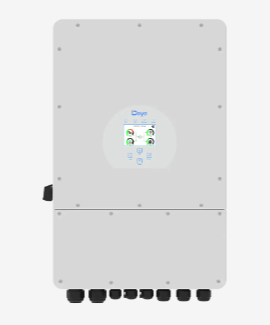

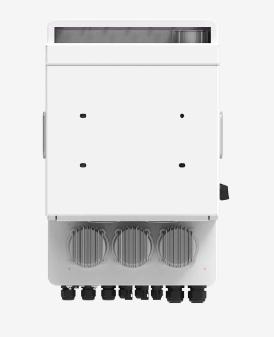

DEYE HYBRID INVERTER SUN-12K-SG04LP3-EU LV 48V

Deye 12kW hybrid inverter offers high-efficiency, three-phase power conversion with 12000W rated output and robust battery and solar integration for residential and commercial use.

Key Specifications and Features

Rated Power: 12000W (12kW), with peak surge power up to 13200W or 24000W for short durations depending on model and application

AC Output: Three-phase output at 230/400V or 220/380V, frequency 50/60Hz.

Input Voltage (DC): Typically 48V battery input, with PV input voltage range of approximately 125V to 800V (varies by model).

Maximum PV Input Power: Around 15,600W, allowing connection to sizeable solar arrays.

MPPT Trackers: Dual MPPT (Maximum Power Point Tracking) for optimal solar harvesting efficiency (>99% MPPT efficiency). Efficiency: Maximum inverter efficiency around 97.6% with minimal energy loss.

Waveform: Pure sine wave output ensures compatibility with sensitive electronics and appliances.

Protection & Safety: Integrated protections including overload, short circuit, overvoltage, surge protection, anti-islanding, reverse polarity, and insulation detection.

Communication & Monitoring: RS485, CAN, optional Wi-Fi/GPRS for remote system monitoring and control.

Physical: IP65 protection rating for dust and water resistance, wall-mounted installation, compact design.

Weight approximately 33-38 kg Battery and Solar Compatibility Supports 48V lead-acid or lithium-ion batteries, including GEL and AGM types.

Max charging/discharging currents typically around 190-240A depending on model. Smart battery management system with multiple charging stages and self-adaptive BMS communication.

Can couple with diesel generators for extended backup power. Allows both DC coupling and AC coupling, facilitating retrofit installations or new solar-battery

Systems Applications Designed for residential, commercial, and light industrial use where reliable and uninterrupted power supply is critical. Ideal for homes with high power demands, small businesses, government buildings, institutions like hospitals and schools requiring backup power.

Supports on-grid, off-grid, and hybrid solar systems, enabling energy independence and grid export where regulations allow.

Facilitates energy cost savings by maximizing solar self-consumption and providing load peak shaving functions

Additional Features

Colorful touch LCD screen for real-time monitoring

Support for up to 16 units in parallel for larger systems

Fast transfer time (around 4 ms) from grid to battery backup operation

Frequency droop control and capability to handle three-phase unbalanced loads

Multiple programmable time periods for battery charging and discharging to optimize battery life and energy use

Warranty typically 5 years, with options for longer depending on seller and installation
