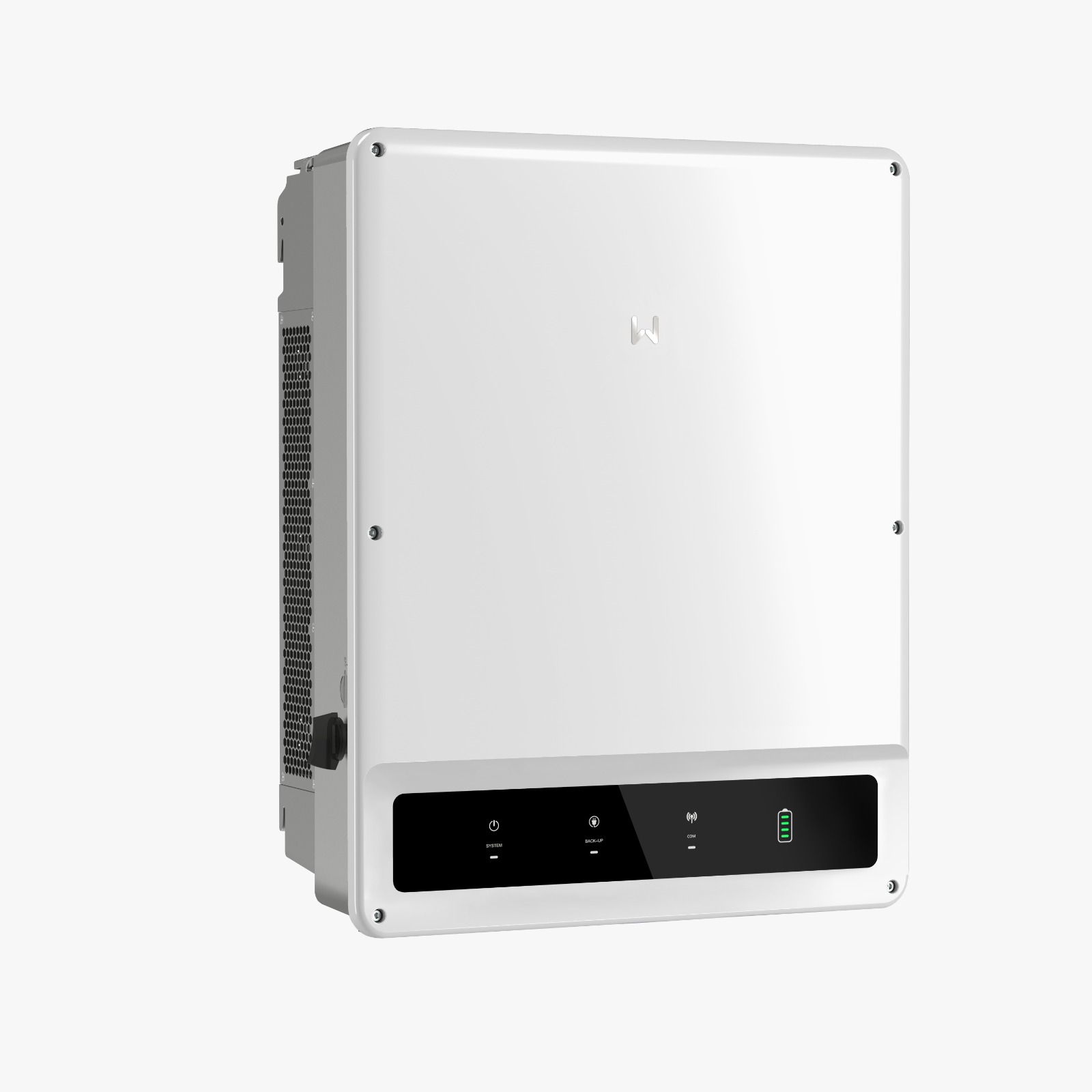

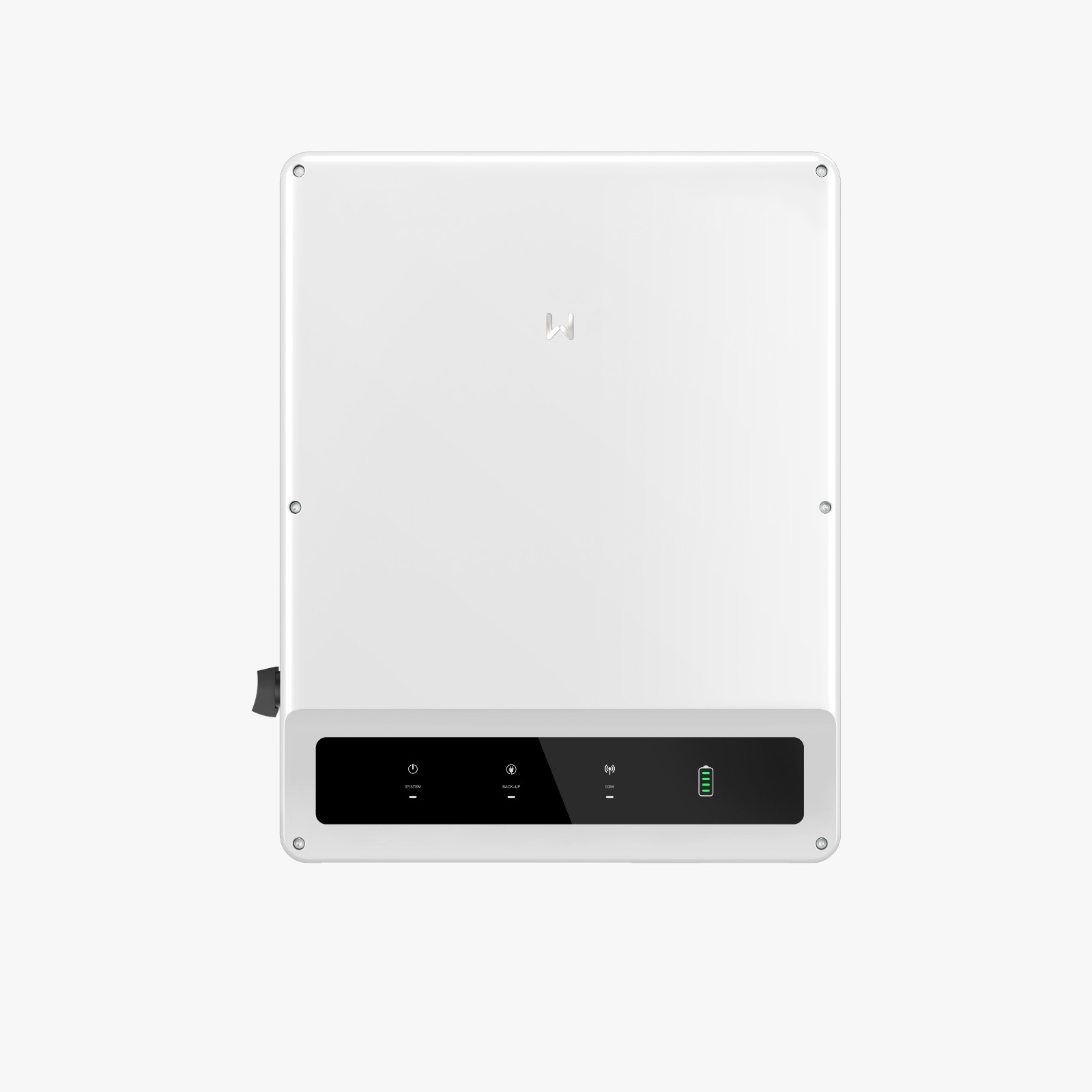

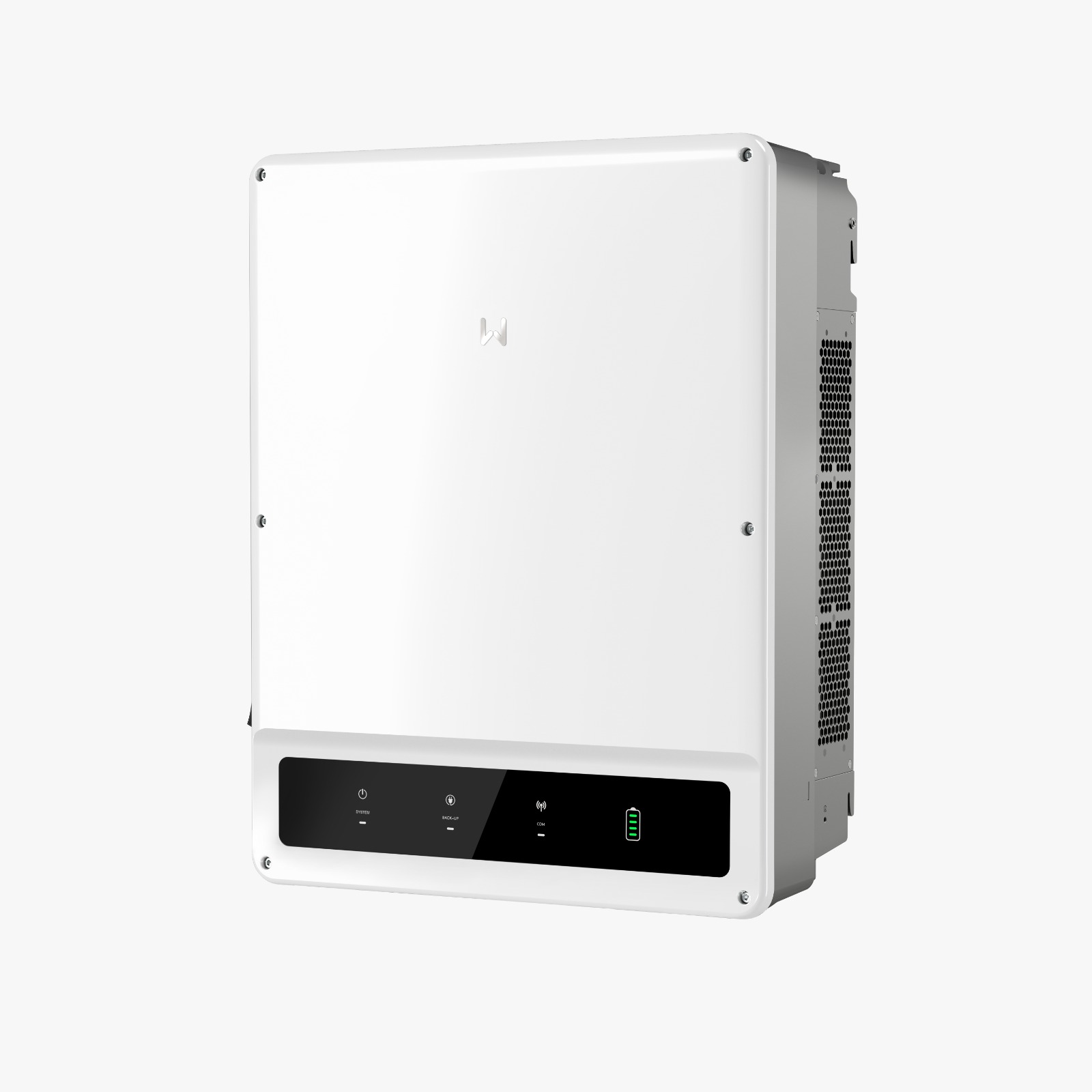

GOODWE 50000W GRID-TIED / HYBRID INVERTER GW50K-ET

The GoodWe GW50K-ET is a robust 50 kW three-phase hybrid inverter designed for commercial and industrial solar and energy storage systems. With a maximum efficiency of 98.1%, it delivers reliable grid-tied and backup performance, supporting intelligent modes like self-consumption, peak shaving, and time-of-use shifting. Compatible with high-voltage lithium-ion batteries (200–800 V), it integrates seamlessly with the GoodWe Lynx C battery system for a complete energy storage solution. Featuring four MPPTs with eight PV string inputs, it optimizes energy yield in diverse conditions. The GW50K-ET supports parallel connections for scalability and, when paired with the optional STS Box, provides UPS-level backup power with rapid switching. Its IP66-rated design ensures durability in harsh environments, while smart fan cooling maintains quiet, efficient operation. Monitor and manage your system effortlessly via the GoodWe SEMS portal. Contact Billson Solar for a tailored C&I solar solution today!

• Key Specifications

  • 1.) Rated Output Power: 50 kW (55,000 VA max apparent power)

  • 2.) Maximum PV Input Power: 75 kW

  • 3.) Maximum Input Voltage: 1,000 V DC

  • 4.) MPPT Operating Voltage Range: 200–850 V

  • 5.) Starting Voltage: 200 V

  • 6.) Nominal Battery Voltage: 500 V

  • 7.) Battery Voltage Range: 200–800 V (high-voltage Li-Ion batteries)

  • 8.) Maximum Charging/Discharging Power: 55 kW

  • 9.) Maximum Charging/Discharging Current: 100 A

  • 10.) Number of MPPTs: 4 with 8 PV string inputs (2 strings per MPPT)

  • 11.) Maximum Input Current per MPPT: 30 A

  • 12.) Maximum Short-Circuit Current per MPPT: 38 A

  • 13.) Maximum Efficiency: 98.1%

  • 14.) Battery-to-AC Efficiency: 97.7%

  • 15.) Nominal Output Voltage: 400 V, 3L/N/PE

  • 16.) Nominal Output Current: 72.2 A (max 79.4 A@400V)

  • 17.) Protection Rating: IP66 (dustproof, waterproof)

  • 18.) Operating Temperature: -35°C to +60°C

  • 19.) Relative Humidity: 0%–100% RH

  • 20.) Operating Altitude: 0–4,000 m

  • 21.) Weight: 63 kg

  • 22.) Dimensions: 600 x 860 x 294 mm

  • 23.) Cooling: Smart fan cooling

  • 24.) Noise Level: <65 dB

  • 25.) Communication: RS485, Wi-Fi, 4G (via optional dongle)

  • 26.) Connectors: DC: MC4; AC: OT terminal

  • 27.) Warranty: 5 years (extendable)

  • 28.) Certifications: IEC62116, IEC61727, VDE-AR-N-4105, EN50549-1, and more
