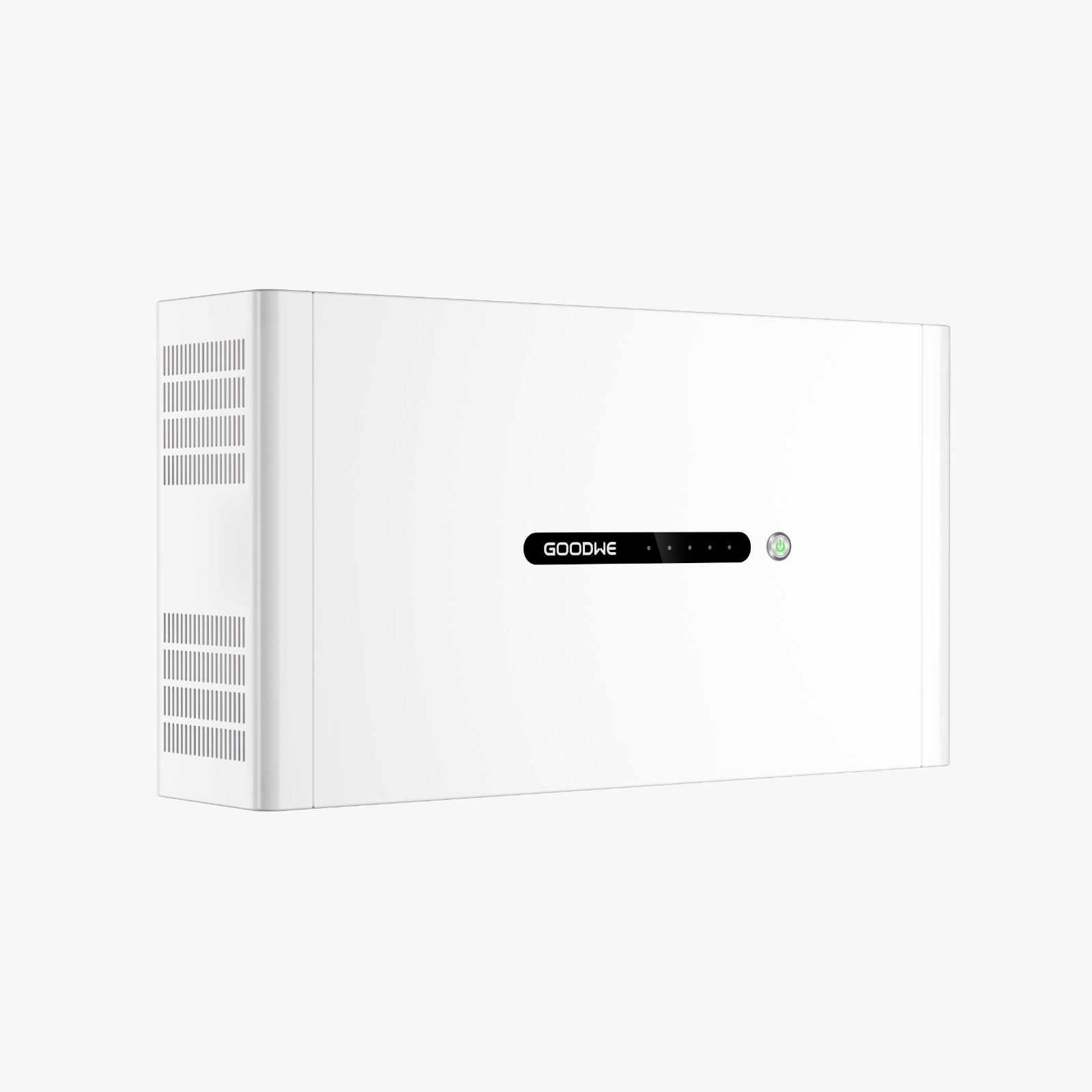

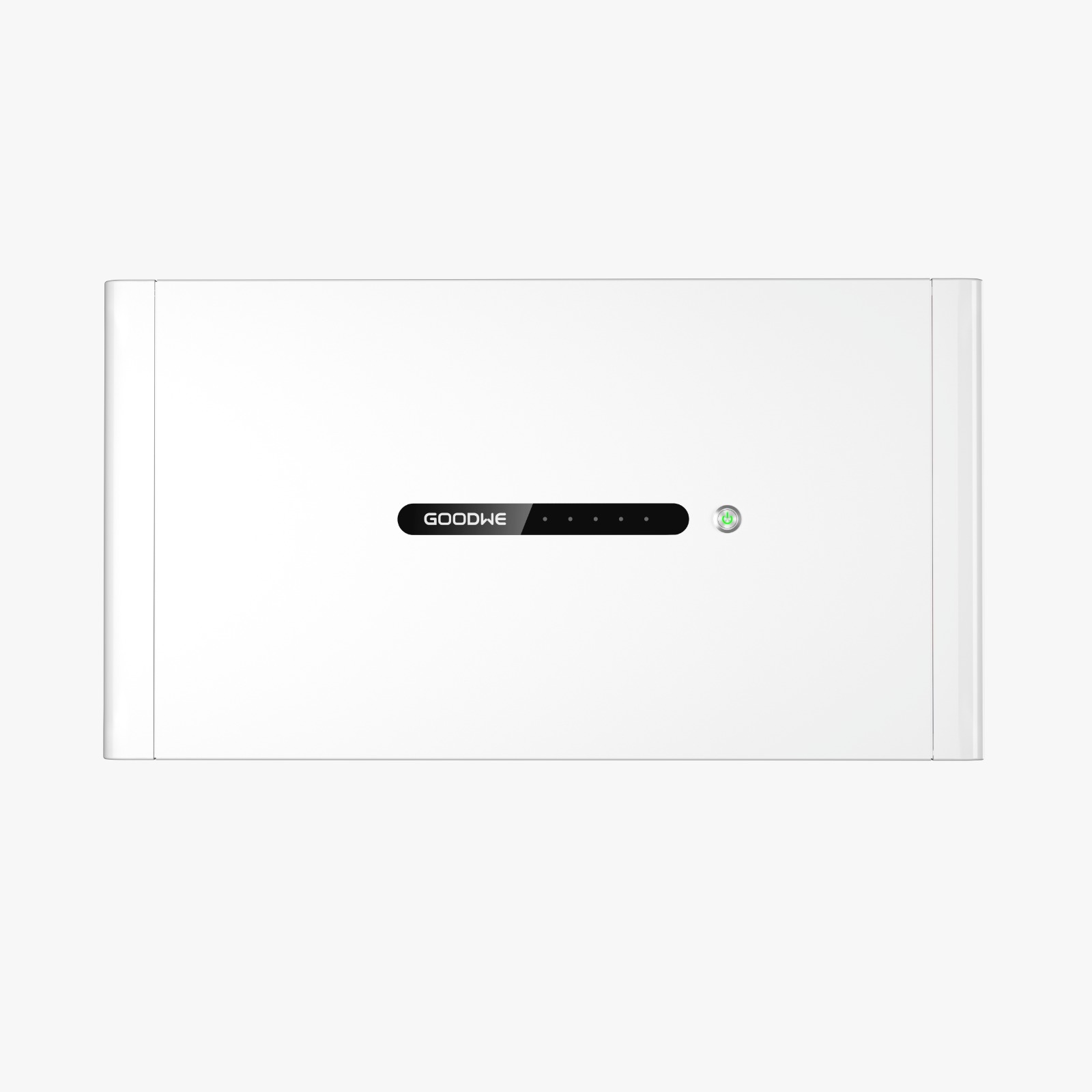

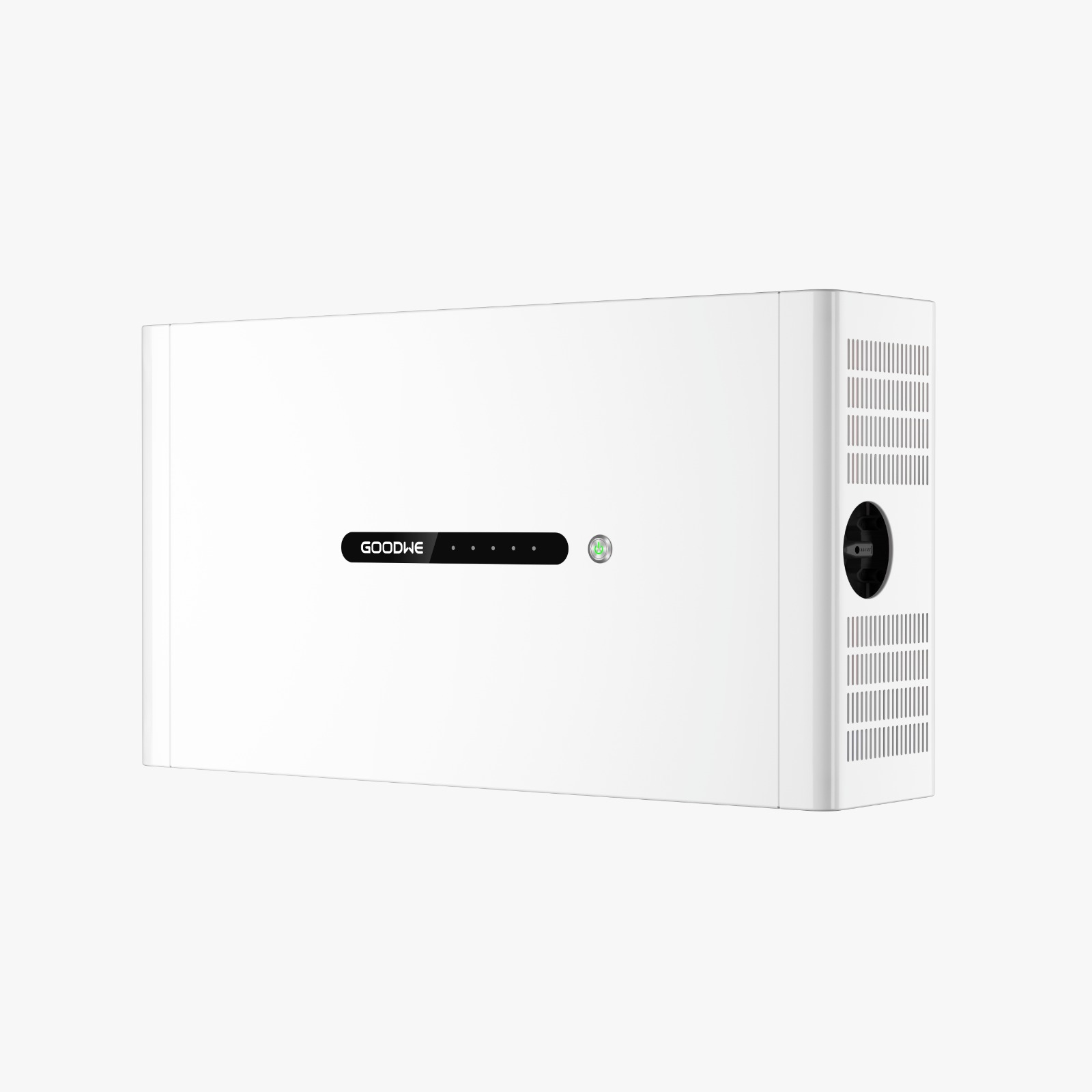

GoodWe Lynx D 5kWh Lithium Ion battery

The GoodWe Lynx D 5.0-10 is a high-voltage 5 kWh lithium iron phosphate (LFP) battery designed for residential and small commercial solar energy storage. With a 90% depth of discharge and ≥95% round-trip efficiency, it optimizes self-consumption, supports backup power, and integrates seamlessly with GoodWe ET and EH series hybrid inverters. Its modular, stackable design allows expansion up to 40 kWh (8 modules), with the flexibility to mix new and old battery packs for cost-effective upgrades. Featuring safe LFP chemistry and an advanced Battery Management System (BMS), it ensures reliable performance and protection against faults. With an IP55 rating for indoor/outdoor installation and plug-and-play wiring, the Lynx D simplifies setup and maintenance. Monitor your system effortlessly via the GoodWe SEMS portal for real-time insights. Contact Billson Solar EA Limited to enhance RIS enhance your energy storage solution today!

• Key Specifications

  • 1.) Battery Type: Lithium Iron Phosphate (LFP)

  • 2.) Nominal Energy Capacity: 5.0 kWh

  • 3.) Usable Capacity: 4.5 kWh (90% DoD)

  • 4.) Nominal Voltage: High-voltage (specific range depends on inverter, typically 180–600 V for ET/EH series)

  • 5.) Nominal Capacity: Not specified (varies by configuration)

  • 6.) Round-Trip Efficiency: ≥95% (0.2C charge/discharge, 25°C)

  • 7.) Cycle Life: ≥4,000 cycles at 90% DoD

  • 8.) Scalability: Up to 8 modules (40 kWh) in parallel

  • 9.) Dimensions (W x H x D): 600 x 380 x 200 mm (per module, approximate)

  • 10.) Weight: ~50 kg per module

  • 11.) Protection Rating: IP55 (dust and water-resistant, suitable for indoor/outdoor use)

  • 12.) Operating Temperature: Charging: 0°C to +50°C; Discharging: -20°C to +50°C

  • 13.) Storage Temperature: -20°C to +45°C

  • 14.) Operating Humidity: 5–95% RH (non-condensing)

  • 15.) Maximum Operating Altitude: 3,000 m

  • 16.) Cooling: Natural convection (fanless)

  • 17.) Communication Interfaces: CAN, RJ45

  • 18.) Certifications: IEC62619, CE, UN38.3, VDE 2510წ

  • 19.) Warranty: 10 years (70% capacity retention or 2.4 MWh/kWh throughput)

  • Compatible Inverters:

  • GoodWe ET, EH, BH, BT series hybrid inverters

  • Applications:

  • On-grid, off-grid, backup, self-consumption, peak shaving

  • Installation:

  • Floor-stacked or wall-mounted (base plate/wall bracket sold separately)
