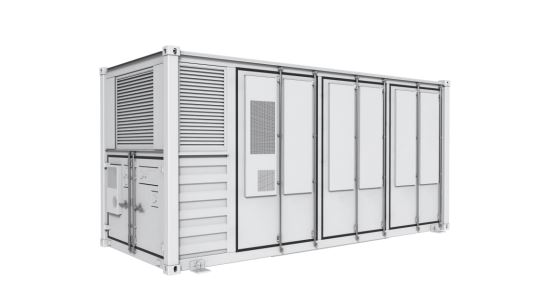

Huawei LUNA2000-1.0MWH-1H1 Smart String Battery Energy Storage System (ESS)

The Huawei LUNA2000-1.0MWH-1H1 Smart String Energy Storage System is a state-of-the-art solution designed for large-scale commercial, industrial, and utility applications, delivering an impressive 1,000 kWh capacity with 91.3% cycle efficiency. Engineered for maximum efficiency and flexibility, it supports peak shaving, grid stabilization, and self-consumption optimization to reduce energy costs and enhance sustainability. Its modular design, housed in a 20-foot container, allows seamless scalability up to 20 units (20 MWh). Featuring safe lithium iron phosphate (LFP) batteries, a hybrid cooling system (liquid and air), and AI-driven safety mechanisms, it ensures reliable performance in extreme conditions (-30°C to +55°C). Integrated with Huawei’s FusionSolar platform for real-time monitoring, the LUNA2000-1.0MWH-1H1 pairs perfectly with Huawei inverters like the SUN2000-100KTL-M2 for a complete energy solution. Contact Bills on Solar EA Limited to power your large-scale projects with this innovative ESS today!

• Key Specifications

  • 1.) Rated Capacity: 1,000 kWh

  • 2.) Maximum Output Power: 500 kW

  • 3.) Battery Type: Lithium Iron Phosphate (LFP)

  • 4.) Maximum Cycle Efficiency: 91.3% (Round Trip Efficiency)

  • 5.) Maximum Cycle Rate: 0.5 CP

  • 6.) Depth of Discharge (DoD): 0–100%

  • 7.) Nominal Voltage: 1,209.6 V

  • 8.) Operating Voltage Range: 1,050–1,500 V

  • 9.) Ampere-hour: 280 Ah

  • 10.) Battery Module Capacity: 16.13 kWh (57.6 V, 280 Ah)

  • 11.) Battery Module Dimensions: 442 x 308 x 660 mm

  • 12.) Battery Module Weight: ≤140 kg

  • 13.) Smart Rack Controller Dimensions: 600 x 270 x 820 mm

  • 13.) Smart Rack Controller Weight: ≤90 kg

  • 14.) Total Dimensions (W x H x D): 6,058 x 2,896 x 2,438 mm (20-foot container)

  • 15.) Total Weight: ≤30,000 kg

  • 16.) Operating Temperature: -30°C to +55°C (derating above 50°C)

  • 17.) Storage Temperature: -35°C to +60°C

  • 18.) Operating Humidity: 0–100% (non-condensing)

  • 19.) Maximum Operating Altitude: 4,000 m

  • Protection Rating: IP55 (dust and water-resistant)

  • 20.) Cooling System: Hybrid (active liquid cooling, natural air cooling, waste heat utilization)

  • Auxiliary Power Supply: 176–264 Vac, single-phase, ≤5 kW

  • 21.) Standby Power Consumption: ≤150 W

  • 22.) Communication Ports: Ethernet, Optical Fiber

  • 23.) Communication Protocol: Modbus TCP

  • 24.) Balance Mode: Active balance

  • 25.) SOC Calibration: Automatic

  • 26.) Safety Features: Cell-level monitoring, AI-based short-circuit detection, directional gas exhaust, top explosion vent, aerosol fire suppression

  • 27.) Certifications: TÜV Rheinland (low degradation), RoHS-6, IEC61727, IEC62116, VDE-AR-N-4105

  • 28.) Warranty: 5 years (extendable, subject to FusionSolar connection)

  • 29.) Compatible Inverters: SUN2000-100KTL-M2, SUN2000-110KTL-M2, SUN2000-115KTL-M2, SUN2000-150K-MG0, SUN5000-150K-MG0, LUNA2000-200KTL-H0 Smart PCS
