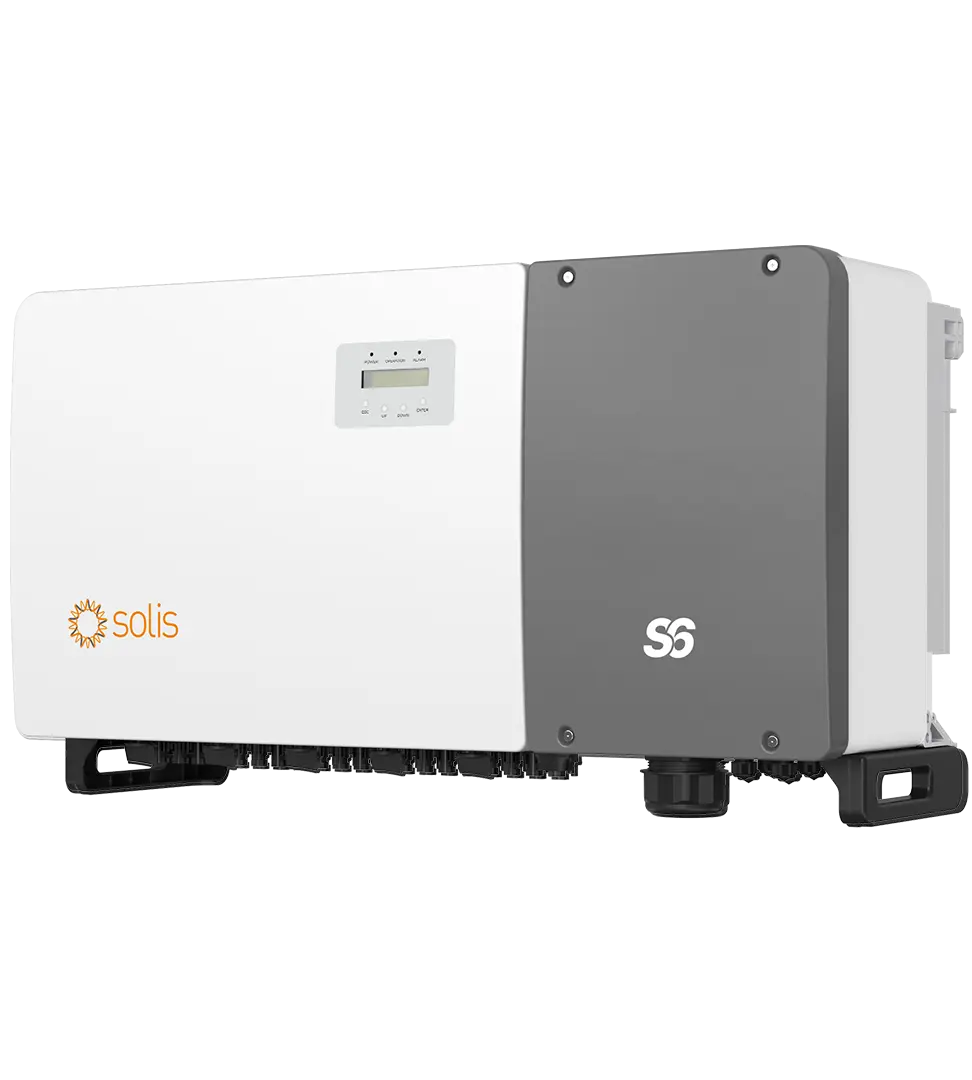

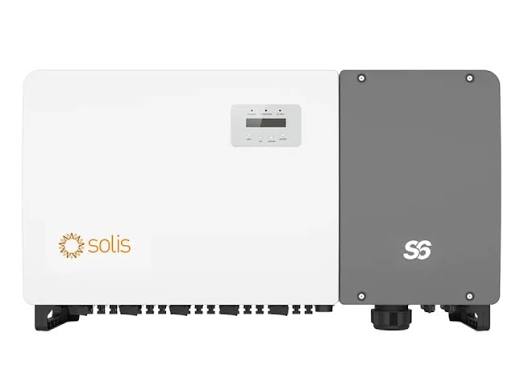

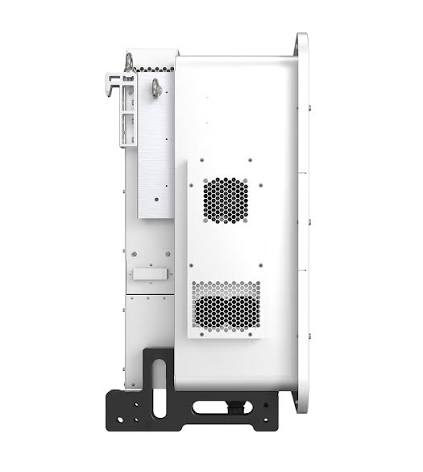

Solis 100kW three-phase grid-tied string inverter

The Solis 100kW three-phase grid-tied string inverter is designed for commercial, industrial (C&I), and utility-scale photovoltaic systems.

Key Technical Specifications

• Rated AC Output Power: 100,000 W (100 kW)
• Max AC / Apparent Power: 110,000 W / 110 kVA
• Max DC Input Power: Up to 165,000 W
• Max DC Input Voltage: 1100 V (MPPT voltage range typically 180V–1000V or 195V–1000V)
• MPPT Trackers: 10 independent MPPTs with up to 20 DC string inputs
• Max Efficiency: Up to 98.7% to 98.8% (Euro efficiency ~98.3%)
• Enclosure & Rating: IP66-rated industrial metal housing
• Dimensions & Weight: ~1014–1065 mm × 567 mm × 314–345 mm; weight around 85–96 kg

Core Features & Protections

• Safety & Protection: Integrated AFCI (AI-based millisecond arc fault circuit interruption), DC/AC type II surge protection, string-level monitoring, I/V curve scanning, and real-time PV grounding detection.
• Control & Export Management: Dual independent RS485 ports and export power control support.
• Monitoring: Full integration with the online SolisCloud Platform via Wi-Fi, LAN, or 4G data loggers.
