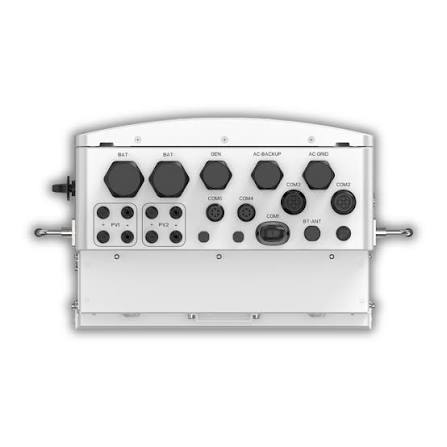

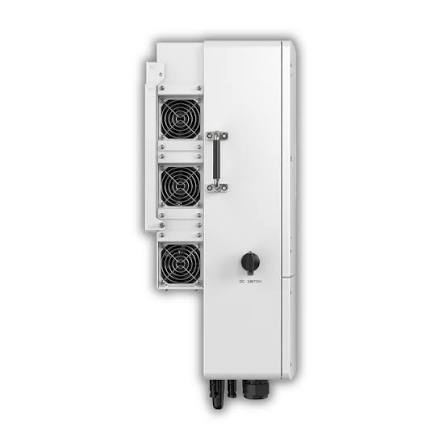

The Solis S6-EH1P8K-L-PLUS is an 8kW single-phase low-voltage (LV) hybrid solar inverter designed for residential and light commercial energy storage systems.

Key Specifications

• Rated AC Output: 8,000W (with 8.8kVA max apparent power)
• Battery Compatibility: Low-voltage 48V systems (battery voltage range: 40V – 60V; Li-ion and lead-acid supported)
• Max Charge/Discharge Current: Up to 190A – 290A depending on the specific Plus/Pro sub-model
• PV Input: Supports up to 16,000W max DC input power / 16kW array, 500V max input voltage, and high-current PV modules (up to 21A–32A per MPPT).
• Switchover Time: Under 4 to 10 milliseconds (fast UPS-grade backup transition)
• Overload Capability: 200% surge capacity for 10 seconds (off-grid/backup) to handle heavy inductive loads like motors, pumps, and air conditioners.
• Efficiency: Up to 96.2% – 96.9% max efficiency.
• Protection & Build: IP66-rated enclosure for indoor or outdoor installation (-25°C to +60°C operational range)
