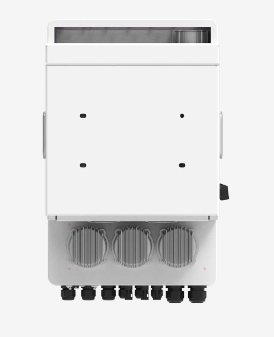

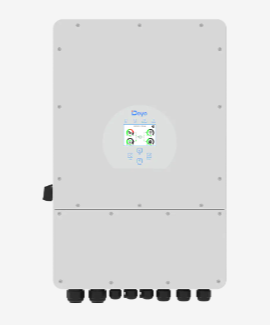

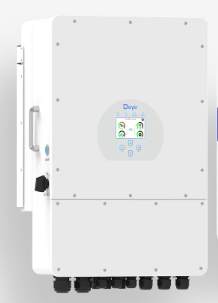

SUN-5-SG04LP3-EU LV 48V DEYE INVERTER

Key Features of the 5kW Deye Hybrid Inverter (SUN-5K-SG01LP1-EU)

The 5kW Deye Hybrid Inverter is a versatile, single-phase hybrid inverter designed for residential and small commercial solar systems, particularly suited for Kenya’s energy needs.

Below are its key features,

High Efficiency (97.6%):Achieves a maximum efficiency of 97.6%, ensuring minimal energy loss during solar energy conversion

Hybrid Functionality:Supports grid-tied, off-grid, and hybrid modes, allowing seamless integration of solar panels, battery storage, and grid power (or diesel generators, common in Kenya for backup).

Dual MPPT Trackers:Features two Maximum Power Point Tracking (MPPT) inputs with a maximum PV input power of 6.5kW (PV access up to 10kW), optimizing energy harvest from solar panels, even in varying sunlight conditions typical in Kenya.

Battery Compatibility:Compatible with both lithium-ion and lead-acid batteries (40–60V range), offering flexibility for cost-effective or high-performance storage solutions.

Supports up to 120A charging/discharging current, suitable for powering appliances with high energy demands.

Smart Energy Management:Automatically switches between solar, battery, and grid power to optimize energy use, reducing reliance on Kenya’s expensive grid electricity (KSh 15–20/kWh). Includes six programmable time periods for battery charging/discharging to align with peak/off-peak tariffs.

Fast Switching (4–5ms):Transitions from grid to off-grid mode in 4–5ms, ensuring uninterrupted power for water pumps during Kenya’s frequent power outages.

Scalability:Supports up to 16 inverters in parallel, enabling expansion.

User-Friendly Monitoring:Equipped with an LCD touchscreen and Wi-Fi for real-time monitoring via mobile app or web interface, allowing cleints to track pump performance and energy production remotely.

Robust Design:IP65-rated for dust and water resistance, suitable for Kenya’s diverse climates (e.g., dusty conditions in Kitui or humid coastal areas like Mombasa).

Operates in temperatures from -25°C to 60°C (derating above 45°C).

Safety Features:Includes anti-islanding protection, PV arc fault detection, input lightning protection, and overvoltage/overcurrent protection, ensuring safe operation in Kenya’s variable grid conditions.

Warranty:Comes with a standard 5-year warranty, extendable to 10 years when paired with compatible batteries providing long-term reliability for Kenyan users.

Zero Export Capability:Features a built-in zero-export function, ideal for Kenyan installations without net metering, preventing excess energy from feeding back to the grid.

Support for Diesel Generators:Can store energy from diesel generators, a common backup source in Kenya, ensuring 24/7 pump operation in off-grid or hybrid setups.
