Project Details

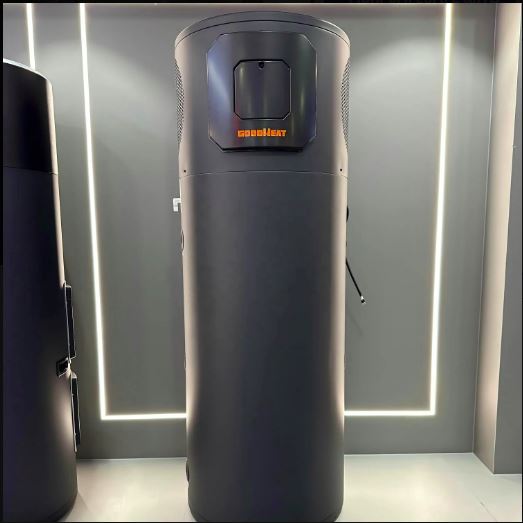

320L Good Heat Pump Water Heater – Compact & Efficient Successfully installed this 320L heat pump from good heat along a 12kW solar system in Mwea, #Kirinyaga Domestic Heat Pump Water Heater（All in One） Tank Capacity(L):320 Model: GHWVSH-320AA1 Power Supply: 220~240V/50Hz/60Hz Rated Heating Capacity(kW): 2.9 Rated Heating Capacity(kW): 0.577 COP:5.2 Max Current(A): 16A Tank Capacity(L): 320 Refrigerant R290/410g Electronic 1000m³/h Horizontal Non-ducted 220~240V/50Hz/60Hz Heat Exchanger: Microchannel Defrosting method: by 4 way valve Water Proof Level : IPX4 Max Water Tank Pressure : 0.85MPa Outer Casing / Shape: METEL Expansion Valve: Electronic Air Flow(m³/h): 1000m³/h Air Discharge: Horizontal Air Duct Diameter: Non-ducted Back-up Heater(kW) : 1.6 Rate Current(A) :7.1 Default Water Temperature（℃） : 60 MAX Water Temperature（℃） :75 Working Temperature Range （℃）:-7-46 Unpacked Dimension(L*W*H)(mm): 650*650*2150 Packed Dimension(L*W*H)(mm): 750*750*2300 Net Weight（kg）: 146 Gross Weight（kg）: 166 Noise（dB(A)): 48 Loading qty(20GP/40HQ) 21/45 Heating Capacity at Air 20℃/15℃, Water Temperature from 15℃ to 55℃ Contact 0795857846 or info@billsonsolar.com Website: www.billsonsolar.com
